Type 1 To Type 2 7kW Electric Car Charging Cables TUV Charging
Cable
Product Description:

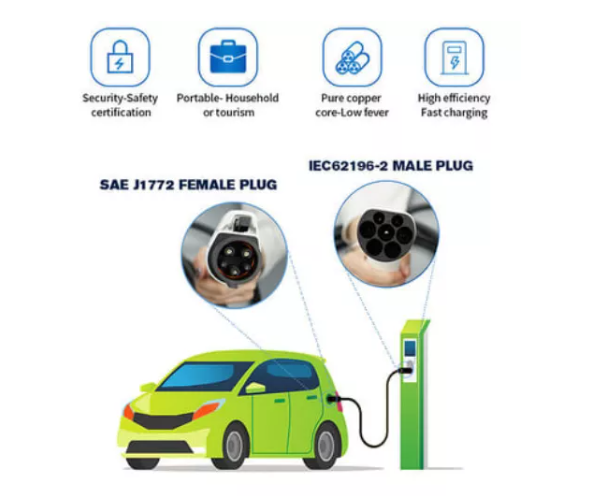

The Type 1 To Type 2 7kW Electric Car Charging Cables TUV Charging
Cable offers you the option of connecting to the charging station with
the type 2 plug of the charging cable. You can then use the Type 1
plug to connect the power source to your electric car or plug-in
hybrid vehicle.
With the Type 2 to Type 1 charging cable, you can charge older
plug-in hybrids or e-cars with the special Type 1 connection, for
example at public charging stations with Type 2 access or wall
boxes.
The Type 2 to Type 1 charging cable is compatible with early or
older brands of e-cars : Nissan (before 2017), Mitsubishi (e.g.
Outlander PHEV), Citroen, Honda, Kia, Opel, Chevrolet, Toyota,
Fisker, Peugeot and Renault (Fluence, Kangoo) and all other models
with a type 1 connector on the vehicle side.
Product Specification:
| Vehicle connector type | Type 1 to Type 2 connector - SAE J1772 to 62196-2 |
| Available lengths | 3M, 5M, 8M, 10M, 15M |
| Plug Color | White / Black |
| Cable Material | TPU |
| IP class | IP55 |
| Rated current | 32 A / 230V - up to 7.4kW, single-phase |
| Operating voltage | 250v |
| operating temperatur | -30 ℃ to 50 ℃ |
| Grounding | Isolated ground |
| Mating cycles | 10,000 |
| Cable thickness | 3*6.0mm² + 2 x 0.5mm² |
| Certification | TUV, CE |
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive.
Airline and sea shipping also optional.
Q3. Do you have any MOQ limit for EV Charging Cable order?
A: Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and
the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order
for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution
including re-call according to real situation.
