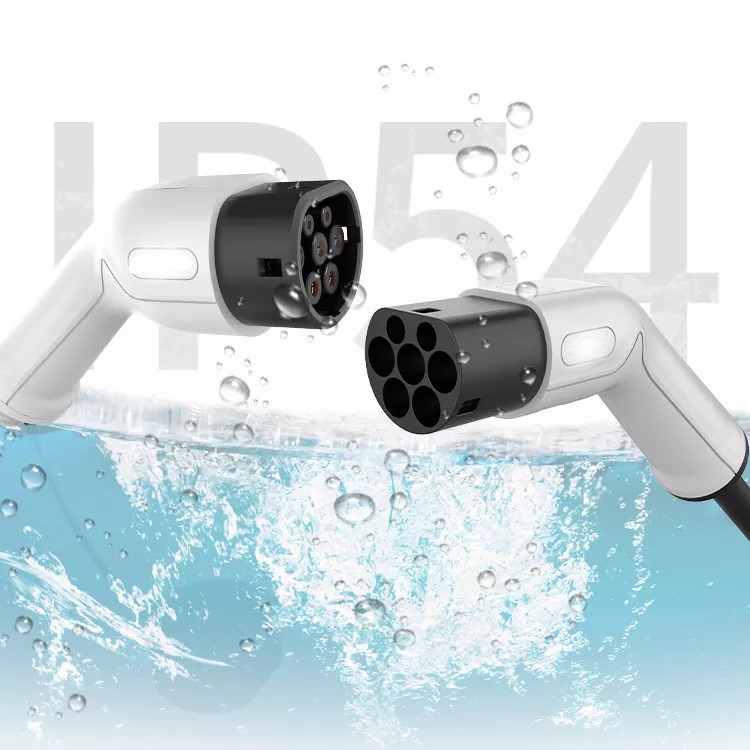

32A EV Charger Cable Mode 3 62196-2 Male To Female EV Charging Plug
Type 2 To Type 2
Product Description:
1) 32A EV Charger Cable Mode 3 62196-2 Male To Female EV Charging
Plug Type 2 To Type 2 suitable for all e-cars and plug-in hybrids .To charge at all
public charging stations or at wall
boxes , you need a reliable charging cable on board. The type 2 charging
cable offered here is available in 5m and 7.5m cable lengths, each
with a maximum charging capacity of 22 kW.
2) The Type 2 to Type 2 charging cable for electric cars and
plug-in hybrids is the most popular charging cable . Do you need a
reliable charging cable on board to charge at public charging
stations? Here we offer the standard charging cable for public
charging stations & plug-in wall boxes with a maximum charging
capacity of up to 22 kW at a fair price and immediately available.
3) The insulation of the charging cable is made of TPU (
thermoplastic polyurethane). As a result, the sheathing is
comparatively thin and light with the same temperature insulation.
Product Specification:
Vehicle connector type | Type2 to Type2 connector - IEC 62196-2 to 62196-2 |
Available lengths | 3M, 5M, 8M, 10M, 15M |
| Cable Material | TPU |
Plug Color | White / Black |
IP class | IP55 |
Rated current | 32A - up to 22kW / 400V, Three-phase |
Operating voltage | 400V |
operating temperatur | -30 ℃ to 50 ℃ |
Grounding | Isolated ground |
Mating cycles | 10,000 |
Cable thickness | 5*6mm² + 2*0.5mm² |
Certification | TUV, CE |
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive.
Airline and sea shipping also optional.
Q3. Can I have a sample order for EV charging cables?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and
the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order
for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution
including re-call according to real situation.
