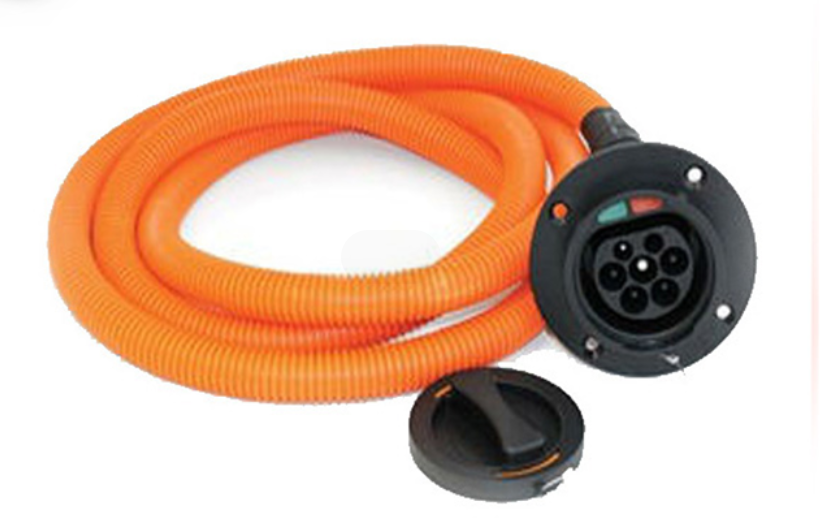

EV Charging Socket IEC 62196-2 Type 2 Male Inlet Socket 32A With
0.5M Cable
Product Description:
Type 2 inlet socket (male), 32A, 480V, 3-phase. is intended for
installation in the vehicle side for a maximum of 32A. Only to be
used in combination with an EVSE (Electric Vehicle Supply Unit)
controller. The socket complies a high-quality insulating
thermoplastic coating that provides IP65 protection against dust
and water ingress from all sides and has a water drainage hole. The
socket is ready for 4-point fixing and the screw end is wire-type
with 0.5 Meter wire.
Product Specification:
| Vehicle connector type | Type 2 male socket - IEC 62196-2 |
| Operation voltage | 250/415V |
| IP class | IP55 |
| Rated current | 16A,32A |
| Contact Resistance | 0.5m ohm Max |
| Contact Pin | Copper Alloy, Silver or Nickel Plating |
| Operating temperature | -30℃ to +50℃ |
Electrical Performance:
1. Rated current: 16Amp or 32Amp
2. Phase Number: 1Phase and 3Phase
3. Operating voltage: 240V 415V AC
4. Insulation resisitance:>1000MΩ(DC500V)
5. Therminal temperature rise:<50K
6. Withstand voltage:2000V
7. Working temperature: -30°C ~+50°C
8. Contact impedance: 0.5m Max
9.CE,TUV Approved
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive.
Airline and sea shipping also optional.
Q3. How to proceed an order for EV charging cables?
A: 1) let us know your requirements or application.
2) We quote according to your requirements or our suggestions.
3) Customer confirms the samples and places deposit for formal
order.
4) We arrange the production.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and
the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order
for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution
including re-call according to real situation.
