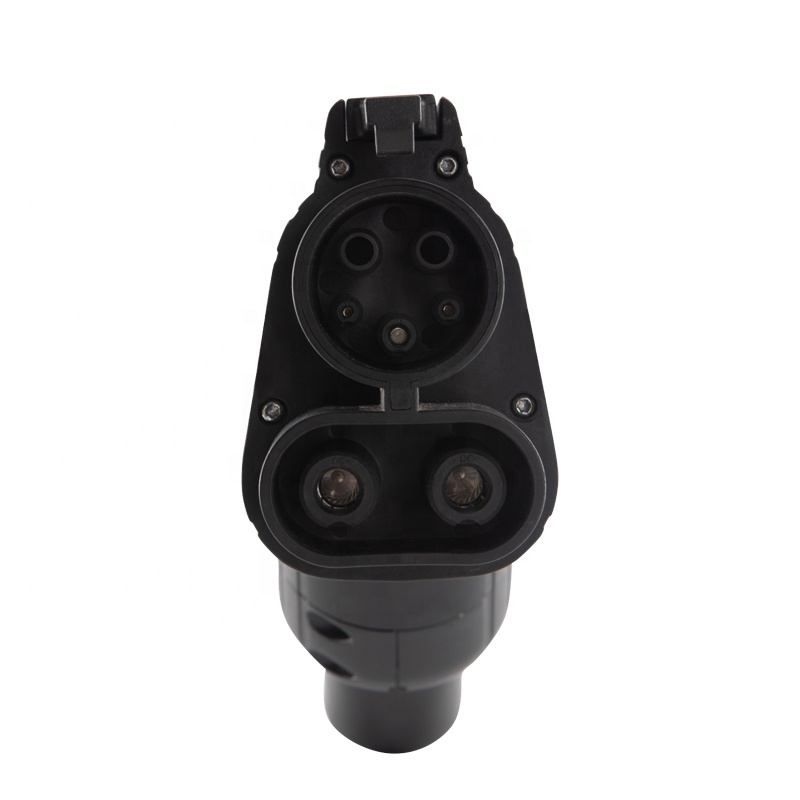

150KW 150A 200A CCS Combo 1 Plug J1772 Connector EV Charger CCS
Combo 1 Connector
Product Description:
DC Input: 125A 850V DC 600V MAX
AC Input: 63A 220V AC MAX
DC Max Charging Power: 90KW
Terminal Temperature Rise: <50K
Contact Resistance: 0.5m Ω Max
Withstand Voltage: 3200VIEC 62196-3 CCS Combo 1 Vehicle Plug Charger
CCS 1 Combo 1 Conductive Charging of Electric Vehicles
CCS Combo 1 Plug Vehicle Plug Charger Conenctor
Combo1 Conductive Charging of Electric Vehicles
Manufacturer IEC 62196-3 CCS Combo 1 Inlet Connector
EV Vehicle Plug DC Fast ChargingType 1 CCS1 Combo1
Duosida CCS1 Electric Vehicle Plug Charger
Combo 1 Inlet Conductive Charging of Electric Vehicles
IEC 62196-3 EV Charging Plug DC CCS1 Connector
Product Specification:
| Plug type | CCS Combo 1 |
| Rated current | 60A / 125A/ 150A /200A |
| Plug shell material | Thermoplastic (flame retardant grade: UL94-0) |
| Operational temperature | -30 °C to +50 °C |
| Vandalism-proof | No |
| UV resistant | Yes |
| Certificate | CE, TUV |
| Additional features | Over-voltage, under-voltage, leakage current and lightning
protection |
| Cable length | 5m or customized |
| Terminal material | Copper alloy, silver plating |
| Terminal temperature rise | ＜50k |
| Withstand voltage | 3200V |
| Contact resistance | ≤0.5mΩ |
| Mechanical life | ＞10000 times of off-load plug in/out |
| Coupled insertion force | Between 45N and 100N |
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive.
Airline and sea shipping also optional.
Q3. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and
the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order
for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution
including re-call according to real situation.
