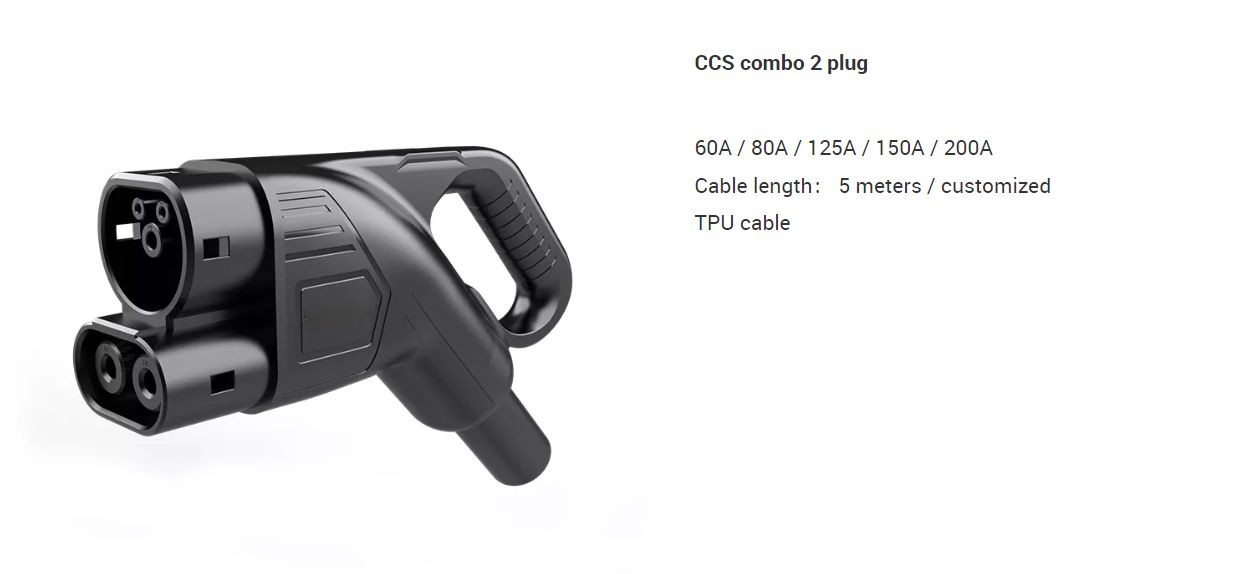

1000V DC 80A CCS Combo Charger CCS Combo 2 Connector With 5M Cable
Product Description:
The CCS combines three-phase with rapid three-phase charging using
alternating current at a maximum of 43 kilowatts (kW), as well as
direct-current charging at a maximum of 200 kW and the future
perspective of up to 350 kW – all in a single system. The CCS
includes the connector and inlet combination as well as all the
control functions. It also manages communications between the
electric vehicle and the infrastructure. As a result, it provides a
solution to all necessary charging requirements.
The Combined Charging System allows AC charging using the Type 1
and Type 2 connector depending on the geographical region. Since
2014 the European Union has required the provision of Type 2 or
Combo 2 within the European electric vehicle charging network.This charging environment encompasses charging couplers, charging
communication, charging stations, the electric vehicle and various
functions for the charging process such as load balancing and
charge authorization.
Product Specification:
| Plug type | CCS Combo 2 |
| Rated current | 60A / 125A/ 150A /200A |
| Plug shell material | Thermoplastic (flame retardant grade: UL94-0) |
| Operational temperature | -30 °C to +50 °C |
| Vandalism-proof | No |
| UV resistant | Yes |
| Certificate | CE, TUV |
| Additional features | Over-voltage, under-voltage, leakage current and lightning
protection |
| Cable length | 5m or customized |
| Terminal material | Copper alloy, silver plating |
| Terminal temperature rise | ＜50k |
| Withstand voltage | 3200V |
| Contact resistance | ≤0.5mΩ |
| Mechanical life | ＞10000 times of off-load plug in/out |
| Coupled insertion force | Between 45N and 100N |
FAQ:
Q1. What about the lead time?
A: 10-15 days for mass production.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 7-10 days to arrive.
Airline and sea shipping also optional.
Q3. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q4. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: 1)Our products are produced in strict quality control system and
the defective rate will be less than 0.5%.
2)During the guarantee period, we will send new one with new order
for small quantity. For defective batch products, we will repair
them and resend them to you or we can discuss the solution
including re-call according to real situation.
